Suction Diffuser
Integrated filtration and flow-conditioning solutions designed to protect pumps, reduce cavitation, and improve system efficiency.
About Suction Diffuser
Suction Diffusers are specialized flow-conditioning devices designed to protect pumps by combining filtration, flow straightening, and compact piping integration into a single unit. They help remove debris, reduce turbulence, minimize pump cavitation, and improve overall system efficiency and reliability.
At Avant Tech, we partner with Flometriq, a globally recognized manufacturer of high-performance Suction Diffusers, to deliver reliable pump protection and flow-conditioning solutions for critical industrial applications. Manufactured in India to international engineering standards, these Suction Diffusers are supplied to projects across the GCC, USA, Europe, and Southeast Asia.
Available in Stainless Steel, Carbon Steel, Duplex, Super Duplex, and other corrosion-resistant alloys, Flometriq Suction Diffusers provide exceptional durability, corrosion resistance, and long-term performance in demanding operating environments. They are widely used in HVAC, Power Generation, Water Treatment, Desalination, Oil & Gas, and Industrial Process systems where efficient pump operation is essential.
Through our partnership with Flometriq, Avant Tech delivers proven pump protection solutions backed by decades of engineering expertise, helping customers enhance equipment reliability, reduce maintenance requirements, and optimize system performance.
Available Models
Choose from our comprehensive range of Suction Diffuser models
Specifications & Details
Technical specifications of our Suction Diffuser models

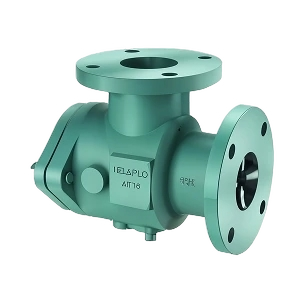

Suction Diffuser
| Feature | Description |
|---|---|
| Body Material | Cast Iron (ASTM A126-B) |
| Cover | Cast Iron with Buna-N O-ring seal |
| Strainer | 1/8″ perforated SS316 plate + 20-mesh SS304 start-up screen |
| Flow Straightener | Integrally cast vanes for turbulence reduction |
| Connections | ANSI/ASME B16.1 Class 125 flanged, sizes 2″–12″ |
| Orientation | Horizontal or vertical pump suction |
| Drain Plug | Standard bottom flange-mounted drain |
| Mounting Pads | Cast-on saddle pads; support foot for piping load |
| Pressure Rating | Up to 200 psi |
| Temperature | Up to 400°F (205°C) |
| Open Area Ratio | Approx. 3–6× nominal outlet pipe area |
| Start-up Screen | Removable 20-mesh liner for commissioning |
| Weight | Ranges from ~19 lb (2″×1¼″) to ~400 lb (12″×12″) |

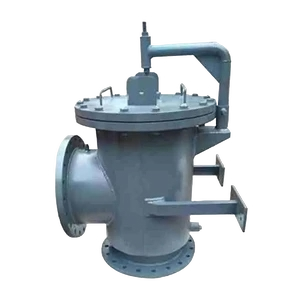

SD-FA Series
| Feature | Description |
|---|---|
| Body Material | Fabricated Carbon Steel; optional Stainless/Duplex |
| Cover | Fabricated with through-bolts and an O-ring seal |
| Strainer Element | Perforated or mesh liner (SS options), start-up screen as needed |
| Flow Straightening | Internal vanes providing 1 to 5 pipe diameters of flow conditioning |
| Connections | ANSI flanged, threaded, or custom |
| Pressure Rating | Up to 285 psi for SS / 200 psi for CS models |
| Temperature | Up to 400°F (204°C) |
| Orientation | Horizontal or vertical mount |
| Drain Plug | Included as a standard feature |
| Code Compliance | ASME B31.1 / B31.3 / VIII Div-1; CRN, TSSA on request |
Applications of Suction Diffusers
Pump Inlet Protection
Prevents scale, rust flakes, weld slag, and foreign matter from entering pumps, ensuring longer bearing and seal life.
Flow Conditioning in Tight Spaces
Replaces long inlet runs and elbows with a single device that straightens and aligns flow, reducing cavitation and turbulence.
HVAC & Building Services
Installed in chilled water, condenser water, or boiler feed systems to ensure consistent flow to pumps with minimal installation footprint.
Water & Wastewater Treatment
Used in raw water intake, filtration pre-feed, and process pumping systems to protect rotating equipment from suspended solids.
Fire Protection Systems
Installed before the jockey or main fire pumps to maintain high reliability with minimal clogging risk.
Chemical, Process & Utility Lines
Protects pumps in chemical dosing or industrial utility systems where reliability and uptime are critical.
Why Choose Avant Tech Suction Diffuser?
Industry-leading expertise and exceptional service quality
State-of-the-Art Facility with In-House Pressure Drop Testing
At Avant Tech we partner with Flometriq Filtration, which operates from a 45,000 sq.ft. world-class combined manufacturing and testing facility equipped with advanced machinery and instrumentation. Our in-house Pressure Drop Testing Lab ensures every strainer is validated for maximum efficiency and reliability under real-world conditions.
Expert Design Team with 30+ Years of Experience
At Avant Tech we partner with Flometriq Filtration, a trusted Suction Diffuser manufacturer, our design team brings over four decades of expertise in creating innovative and reliable filtration solutions. Whether it's a standard model or a customized design, our team ensures every solution meets the highest industry standards for quality and efficiency.
Exceptional After-Sales Support
Our commitment to customer satisfaction goes beyond delivery. With a dedicated support team, we provide guidance on installation, maintenance, and troubleshooting to ensure the long-term performance of your equipment.
Prompt Delivery
As a leading supplier, we understand the importance of timely delivery for industrial operations. With standard models in stock and an efficient supply chain, we ensure your orders are delivered on time, every time.
Manufacturing Facility Gallery
Explore our state-of-the-art manufacturing facility
Straighten the flow before it asks the pump to do extra work.
Suction diffusers combine flow conditioning, debris capture, and pump inlet protection in compact pump-room layouts.
Pump Data
Share pump model, flow, suction size, pressure, temperature, and orientation.
Piping Check
Send flange standard, pipe layout, available space, support needs, and access limits.
Diffuser Selection
Confirm cast or fabricated style, strainer basket, vane arrangement, and material.
Quote & Supply
Receive model, pricing, drawing support, test needs, and delivery plan.
Pump protection starts upstream of the impeller.
We align diffuser geometry, strainer access, connection details, and support loads with your pump installation.
Request a Quote
Send pump model, suction size, flow, pressure, flange standard, material, and orientation.
Your pump data, drawings, and project details remain confidential.
Flow Conditioning
Integrated vanes help reduce turbulence at pump suction.
Debris Capture
Built-in basket helps stop solids before they reach rotating equipment.
Compact Layout
Combines elbow, strainer, and flow straightening functions in one assembly.
