SD-FA-Series
Product
SD-FA-Series
Design
- Standard sizes from 10'X6' up to 24'X24'
- Designed for direct mounting to the suction side of a pump in either horizontal or vertical positions.
- Integral straightening vanes reduce flow turbulence.
- Strainers are complete with RF flanges in accordance with ASME B16.5
- Availble with equal or reduced outlet flanges Welded on supporting pads for convenient mounting of standard I.D. support foot.
- All welders are qualified to ASME section IX
- Diffusers designed to meet the requirements of ASME B31.1, ASME B31.3 and/or ASME section VIII, DIV.I.
- Drain connection furnished with plug as standard
- Differntial connections are optional
Parts List and Standard Materials
| Description | Carbon Steel | Stainless Steel |
|---|---|---|
| Shell | A53 E/B/A 106-B | A312 |
| Nozzles | A53 E/B/A 106-B | A312 |
| Flanges | A105 | A182 |
| Heads | A516-70 | A240 |
| Coupling | A105 | A182 |
| Plug | A105 | A182 |
| Basket | 304 SS | 304 SS |
| Gasket | 304 SS Spiral Wound | 304 SS Spiral Wound |
| Stud | A193-B7 | A193-B8-I |
| Nut | A194-2H | A194-B |
Note 1: 304SS diffusers use 304 grade material. 316SS diffusers use 316 grade material. Dual rated material may be used.
Note 2: Recommended spares.

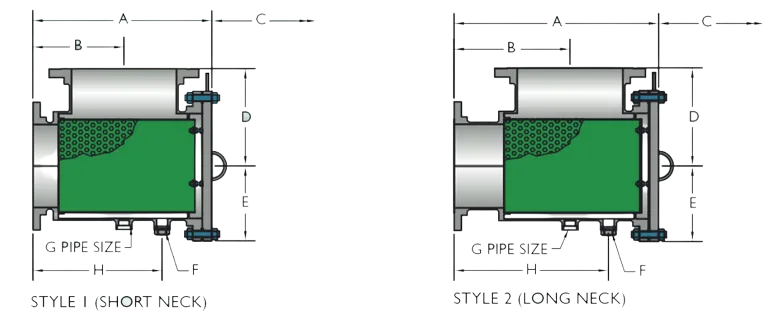

Mechanical Specifications & Dimensions
| Size (Inlet x Outlet) | A (Style 1 / 2) | B (Style 1 / 2) | C | D | E | F | G | H (Style 1 / 2) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| 10 x 6 (250 x 150) | 19.75 / 24.63 in (502 / 626 mm) | 9.75 / 14.25 in (248 / 362 mm) | 16.38 in (416 mm) | 12.63 in (321 mm) | 8.00 in (203 mm) | 1 in (25 mm) | 1 in (25 mm) | 13.75 / 17.75 in (349 / 451 mm) | 261 Lbs / 118 Kg |
| 10 x 8 (250 x 200) | 20.38 / 24.63 in (518 / 626 mm) | 10.00 / 14.25 in (254 / 362 mm) | 16.75 in (425 mm) | 12.63 in (321 mm) | 9.50 in (241 mm) | 1 in (25 mm) | 1 in (25 mm) | 14.13 / 18.38 in (359 / 467 mm) | 339 Lbs / 154 Kg |
| 10 x 10 (250 x 250) | 20.75 / 25.50 in (527 / 648 mm) | 10.13 / 14.88 in (257 / 378 mm) | 17.00 in (432 mm) | 13.63 in (346 mm) | 10.50 in (267 mm) | 1 in (25 mm) | 1 in (25 mm) | 14.38 / 19.13 in (365 / 486 mm) | 420 Lbs / 191 Kg |
| 12 x 8 (300 x 200) | 22.38 / 27.88 in (568 / 708 mm) | 11.00 / 15.25 in (279 / 387 mm) | 18.75 in (476 mm) | 12.88 in (327 mm) | 9.50 in (241 mm) | 1-1/2 in (40 mm) | 1-1/2 in (40 mm) | 15.63 / 19.88 in (397 / 505 mm) | 437 Lbs / 198 Kg |
| 12 x 10 (300 x 250) | 22.75 / 27.50 in (578 / 699 mm) | 11.25 / 16.00 in (286 / 406 mm) | 18.88 in (479 mm) | 13.88 in (353 mm) | 10.50 in (267 mm) | 1-1/2 in (40 mm) | 1-1/2 in (40 mm) | 16.00 / 20.75 in (406 / 527 mm) | 530 Lbs / 240 Kg |
| 12 x 12 (300 x 300) | 23.38 / 28.13 in (594 / 714 mm) | 11.50 / 16.25 in (292 / 413 mm) | 19.25 in (489 mm) | 15.13 in (384 mm) | 11.75 in (298 mm) | 1-1/2 in (40 mm) | 1-1/2 in (40 mm) | 16.38 / 21.13 in (416 / 537 mm) | 650 Lbs / 295 Kg |
| 14 x 10 (350 x 250) | 24.00 / 28.75 in (610 / 730 mm) | 11.88 / 16.63 in (302 / 422 mm) | 20.13 in (511 mm) | 14.00 in (356 mm) | 10.50 in (267 mm) | 1-1/2 in (40 mm) | 1-1/2 in (40 mm) | 16.88 / 21.63 in (429 / 549 mm) | 670 Lbs / 304 Kg |
| 14 x 12 (350 x 300) | 24.63 / 31.13 in (626 / 791 mm) | 12.13 / 18.38 in (308 / 467 mm) | 20.50 in (521 mm) | 16.00 in (406 mm) | 11.75 in (298 mm) | 1-1/2 in (40 mm) | 1-1/2 in (40 mm) | 17.38 / 22.13 in (441 / 562 mm) | 808 Lbs / 367 Kg |
