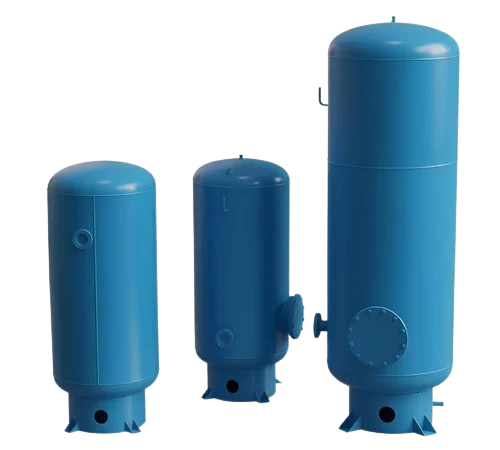

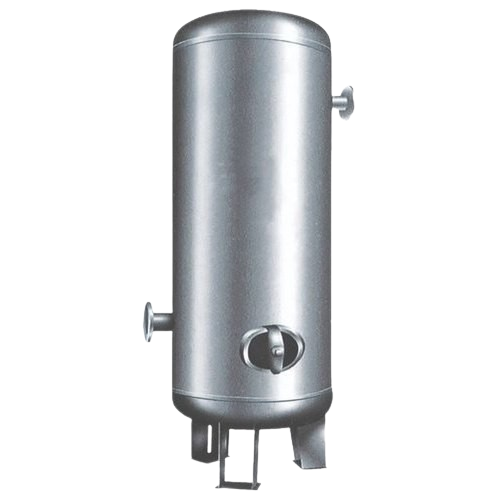

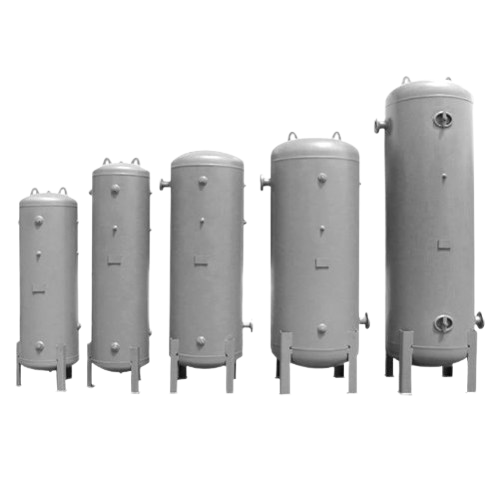

Air Receiver
High-capacity air storage solutions designed to optimize compressor efficiency, stabilize pressure fluctuations, and deliver reliable pneumatic power across industrial applications.
About Air Receivers
Air Receivers are essential components in compressed air systems, designed to store compressed air, stabilize pressure fluctuations, and ensure a consistent air supply to downstream equipment. They help improve system efficiency by reducing compressor cycling, minimizing energy consumption, and extending the lifespan of pneumatic equipment.
At Avant Tech, we partner with Flometriq, a globally recognized manufacturer of high-performance industrial Air Receivers, to provide reliable compressed air storage solutions for a wide range of industries. Manufactured in India to international engineering standards, these receivers are engineered for durability, safety, and efficient operation in demanding industrial environments.
Available in capacities ranging from 0.3 to 20 cubic meters, Flometriq Air Receivers are suitable for manufacturing, automotive, food & beverage, pharmaceutical, construction, and utility applications. Optional accessories such as safety valves, pressure gauges, and auto-drain valves are available to meet specific operational requirements.
All Air Receivers undergo stringent quality control and testing procedures to ensure compliance with applicable pressure vessel standards, delivering reliable, safe, and efficient performance throughout their service life.
Features
- •High-capacity storage for optimized compressor efficiency
- •Pressure fluctuation stabilization and load balancing
- •Reduced compressor cycling for extended equipment life
- •Robust carbon steel construction with corrosion protection
- •Multiple mounting options and configurations
- •Integrated drain valve for moisture removal
Optional Accessories
- •Safety Valves
- •Pressure Gauges
- •Auto Drain Valve
- •Pressure relief systems
- •Isolation ball valves
Applications
- •Manufacturing and automotive plants
- •Food and beverage processing facilities
- •Pharmaceutical production plants
- •Construction and mining operations
- •General industrial utilities
- •Pneumatic tool distribution systems
Key Specifications
- •Capacity: 30 L to 17000L
- •Hydro Test Pressure: 210 psig
- •Max. Shell Thickness: 25 mm
- •Standard Design Pressure: 140 psig
- •MOC: SA516 GR B , CS TO IS 2062
- •Material: Carbon Steel (Mild Steel)
- •Surface Treatment: Epoxy Paint / Enamel - 80 micron standard
- •Design Standard: IS-2825 / ASME SEC VIII DIV -1
- •Manway: Bolted and self closing screwed type.
- •Mounting: Saddle, Piped legs, Channel legs as per customer requirements.
- Note: Higher pressure rated receivers can be supplied on request.
Sizing the Air Receiver
Air receivers are generally sized keeping in mind the following factors:
Fluctuation/Variation in Consumption and Demand
The system must account for variable load patterns throughout operation.
Compressor Capacity and Distribution Required
The receiver must match the compressor output and system demand characteristics.
The maximum consumption in the distribution system is the sum of the consumption of individual components. The summarized consumption must be multiplied with a usage factor ranging 0.1 – 1 depending on the system.
For determining the receiver size, a pressure bandwidth is necessary. If we assume the average consumption in a system is 150 psi and the compressor is set at 150 psi, any increase in load will result in a pressure drop since the response time in the system is not accounted for. A factor of safety for fluctuation in the system should be considered, thus a pressure bandwidth is required.
If the compressor operates at 160 psig, the difference between 150 psig and 160 psig accounts for the air stored in the receiver. If the demand increases, the pressure can drop 10 psig before the minimum requirement is met. Pressure and flow controllers can be used after the receiver for stabilizing downstream pressure to 150 psig and flattening demand peaks. Note that in a compressed air system, the pipework also serves the purpose of a buffered volume.
Receiver Volume Calculation Formula:
t = V(p₁ - p₂) / (C × pₐ)
Where:
V = Volume of the receiver tank (cu ft)
t = Time for receiver to go from upper to lower pressure limits (min)
C = Free air needed (scfm)
pₐ = Atmospheric pressure (14.7 psia)
p₁ = Maximum tank pressure (psia)
p₂ = Minimum tank pressure (psia)
It is also common to size receivers 4 gallons per compressor hp (horse power).
Specifications of Standard Air Receivers
| Model No. | Volume (m³) | Size Dia. (mm) | Height (mm) | CFM | m³/Hr |
|---|---|---|---|---|---|
| AV-CS-187 | 0.3 | 600 | 830 | 110 | 187 |
| AV-CS-323 | 0.5 | 600 | 1530 | 190 | 323 |
| AV-CS-578 | 1 | 750 | 2000 | 340 | 578 |
| AV-CS-969 | 1.5 | 900 | 2000 | 570 | 969 |
| AV-CS-1200 | 2 | 1100 | 1700 | 710 | 1200 |
| AV-CS-2554 | 3 | 1250 | 2000 | 1510 | 2554 |
| AV-CS-3493 | 4 | 1400 | 2150 | 2055 | 3493 |
| AV-CS-4420 | 5 | 1500 | 2350 | 2600 | 4420 |
| AV-CS-5049 | 6 | 1600 | 2475 | 2970 | 5049 |
| AV-CS-6800 | 8 | 1800 | 2950 | 4000 | 6800 |
| AV-CS-8500 | 10 | 2000 | 2550 | 5000 | 8500 |
| AV-CS-10200 | 12 | 2000 | 3200 | 6000 | 10200 |
| AV-CS-11900 | 14 | 2000 | 3800 | 7000 | 11900 |
| AV-CS-13600 | 16 | 2000 | 4450 | 8000 | 13600 |
| AV-CS-15300 | 18 | 2200 | 4050 | 9000 | 15300 |
| AV-CS-17000 | 20 | 2200 | 4600 | 10,000 | 17000 |
Why Choose Avant Tech Air Receiver?
Industry-leading expertise and exceptional service quality
State-of-the-Art Facility with In-House Pressure Drop Testing
At Avant Tech we partner with Flometriq Filtration, which operates from a 45,000 sq.ft. world-class combined manufacturing and testing facility equipped with advanced machinery and instrumentation. Our in-house Pressure Drop Testing Lab ensures every strainer is validated for maximum efficiency and reliability under real-world conditions.
Expert Design Team with 30+ Years of Experience
At Avant Tech we partner with Flometriq Filtration, a trusted Air Receiver manufacturer, our design team brings over four decades of expertise in creating innovative and reliable filtration solutions. Whether it's a standard model or a customized design, our team ensures every solution meets the highest industry standards for quality and efficiency.
Exceptional After-Sales Support
Our commitment to customer satisfaction goes beyond delivery. With a dedicated support team, we provide guidance on installation, maintenance, and troubleshooting to ensure the long-term performance of your equipment.
Prompt Delivery
As a leading supplier, we understand the importance of timely delivery for industrial operations. With standard models in stock and an efficient supply chain, we ensure your orders are delivered on time, every time.
Manufacturing Facility Gallery
Explore our state-of-the-art manufacturing facility
Give compressed air a buffer that keeps pressure swings in check.
Air receiver vessels store compressed air, reduce pulsation, and stabilize demand peaks across industrial air systems.
Air Demand
Share compressor capacity, receiver volume, flow rate, duty cycle, and pressure range.
Vessel Conditions
Send design pressure, temperature, code requirement, drain, nozzle, and safety valve needs.
Layout Choice
Confirm vertical or horizontal orientation, foundation limits, finish, and nozzle layout.
Quote & Certification
Receive pricing, vessel configuration, testing scope, documents, and delivery plan.
Pressure storage specified for safety and steady demand.
We align volume, design pressure, nozzle layout, coating, testing, and certification requirements before build.
Request a Quote
Send receiver volume, working/design pressure, orientation, nozzle schedule, finish, and code needs.
Your system data, drawings, and operating details remain confidential.
Certified Pressure Vessel
Design, testing, and documentation aligned to required pressure vessel code.
Nozzle Customization
Inlet, outlet, drain, relief valve, gauge, and inspection details planned upfront.
System Stabilization
Sized to reduce pulsation, manage peak demand, and protect downstream equipment.
