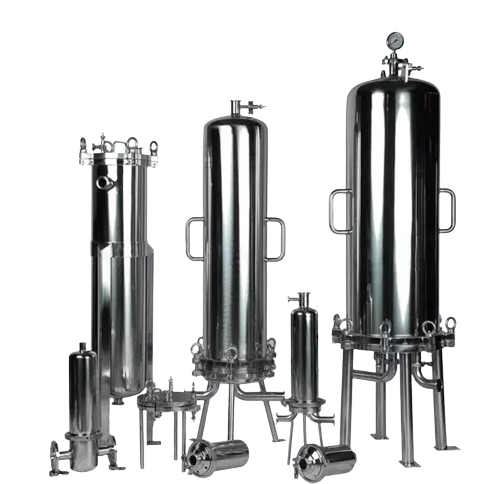

Micron Cartridge Housing
Industrial-grade filtration housing solutions designed for high-efficiency micron level separation and maximum dirt holding capacity.
About Micron Cartridge Housing
Micron Cartridge Housing units are precision-engineered filtration vessels designed to deliver superior separation efficiency and extended operational life. These housings are specifically engineered to accommodate industry-standard cartridge filters for seamless integration into existing filtration systems.
Featuring a robust construction with optimized flow paths, these housings provide low pressure drop while maintaining exceptional dirt holding capacity. The design incorporates dish tops with quick-closing covers as standard, complemented by flat bolted covers for high-pressure applications, ensuring maximum operational flexibility and system integrity.
Our housings support both Double Open End (DOE) and Single Open End (SOE) cartridges with micron ratings ranging from 1 to 10 microns. Available in carbon steel, rubber-lined, and stainless steel variants, they are suitable for demanding applications across pharmaceuticals, water treatment, dairy, chemicals, and industrial coolants.
All welders are qualified to ASME Section IX standards, ensuring consistent quality and reliability. With positive sealing arrangements to prevent by-passing and multiple end connection options—including screwed NPT/BSP and flanged ANSI/DIN connections—Micron Cartridge Housings deliver dependable filtration performance in the most challenging environments.

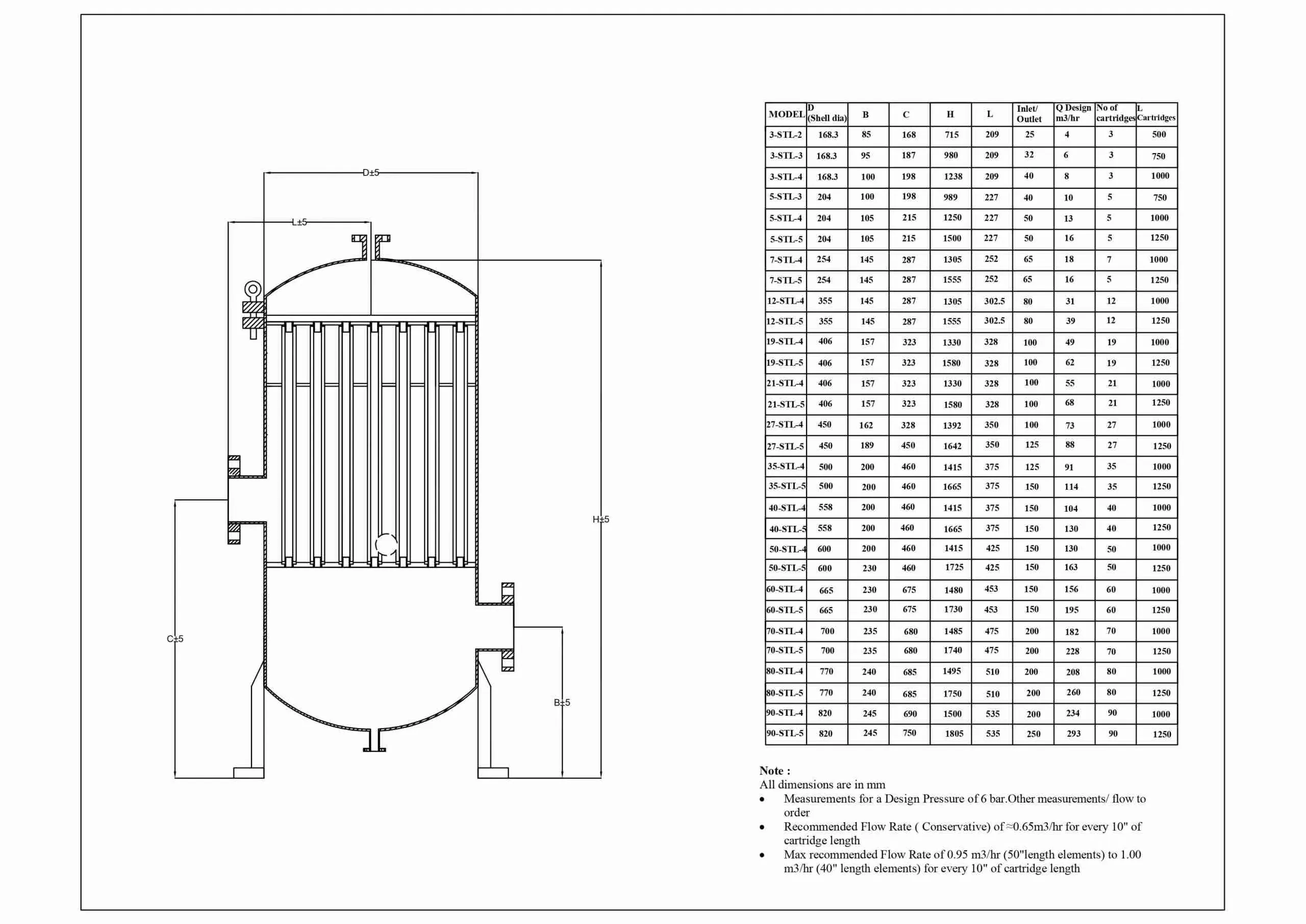

Design Data
| Parameter | Specification |
|---|---|
| Design Pressure | 6 bar (standard, higher on request) |
| Design Temperature | -10 to 100°C |
| Vessel Design (Steel) | ASME SEC VIII - Div 1 / Div 2 |
Standard Cartridges
| Parameter | Specification |
|---|---|
| Diameter (NB) | 50, 65, 80, 100, 150, 200 |
| Ends | Double Open End (DOE) / Single Open End (SOE) |
| Degree of Filtration (Microns) | 1, 5, 10 |
Material Component Data & Design
| Component | Material |
|---|---|
| Housing | Carbon Steel, CS Rubber lined, SS 316, SS 316 L, SS 304, SS 304L |
| Filter Plates | Carbon Steel, CS Rubber lined, SS 316, SS 316 L, SS 304, SS 304L, PP, PVC |
| Fasteners | A193 B7 Bolts & A 194 2 H Nuts with spring washer, SS 304/316 |
| Seals For Dish Heads | Buna N (Nitrile Rubber - NBR), Viton (Fluorocarbon - FKM), PTFE |
| Gaskets for Flat Heads | Buna N (Nitrile Rubber - NBR), Viton (Fluorocarbon - FKM), PTFE, Neoprene |
Features
- •Low Pressure Drop for optimal system efficiency
- •High Dirt holding cycle maximizes filter life
- •Dish Top with Quick Closing Cover is standard
- •Flat Bolted Covers for high pressure and lined models
- •All welders qualified to ASME Section IX
- •Raw Water Drain and Clear Water Drain is standard
End Connections
- •Screwed to NPT / BSP
- •Flanged to ANSI / DIN
- •Tri Clover Adaptors on Request
Applications
- •Pharmaceuticals
- •Water Treatment
- •Dairy
- •Chemicals
- •Coolants
- •Dyes & Intermediates, Paints & Pigments
Special Features
- •Housings suitable for DOE and SOE cartridges
- •Positive sealing arrangement to avoid by-passing
- •Vents with plug standard
- •DP indicators, switches and transmitters available on request
Why Choose Avant Tech Micron Cartridge Housing?
Industry-leading expertise and exceptional service quality
State-of-the-Art Facility with In-House Pressure Drop Testing
At Avant Tech we partner with Flometriq Filtration, which operates from a 45,000 sq.ft. world-class combined manufacturing and testing facility equipped with advanced machinery and instrumentation. Our in-house Pressure Drop Testing Lab ensures every strainer is validated for maximum efficiency and reliability under real-world conditions.
Expert Design Team with 30+ Years of Experience
At Avant Tech we partner with Flometriq Filtration, a trusted Micron Cartridge Housing manufacturer, our design team brings over four decades of expertise in creating innovative and reliable filtration solutions. Whether it's a standard model or a customized design, our team ensures every solution meets the highest industry standards for quality and efficiency.
Exceptional After-Sales Support
Our commitment to customer satisfaction goes beyond delivery. With a dedicated support team, we provide guidance on installation, maintenance, and troubleshooting to ensure the long-term performance of your equipment.
Prompt Delivery
As a leading supplier, we understand the importance of timely delivery for industrial operations. With standard models in stock and an efficient supply chain, we ensure your orders are delivered on time, every time.
Manufacturing Facility Gallery
Explore our state-of-the-art manufacturing facility
Dial filtration down to the micron without overcomplicating service.
Micron cartridge housings provide fine filtration for process liquids using cartridge elements selected for required retention and flow.
Filtration Duty
Share media, flow, pressure, temperature, viscosity, and micron rating.
Element Details
Send cartridge type, DOE/SOE preference, quantity, length, and changeout frequency.
Housing Match
Confirm material, nozzle size, seal type, vent, drain, and pressure vessel code.
Quote & Supply
Receive housing configuration, cartridge recommendation, pricing, and delivery plan.
Fine filtration specified around elements, seals, and access.
We match cartridge format, housing material, pressure class, seal compatibility, and maintenance needs before quoting.
Request a Quote
Send flow, media, micron rating, cartridge type, material, pressure, temperature, and quantity.
Your process data, filtration targets, and project drawings remain confidential.
Micron-Level Retention
Cartridge selection aligned to required particle removal and pressure drop.
Material & Seal Options
Housing, plates, fasteners, and seals selected for media compatibility.
Maintenance Planning
Element count, access, drains, vents, and changeout frequency reviewed upfront.
