YSCW Series
Product
YSCW-Series
Design
- Sizes 15nb to 40 nb
- Strainers are available with threaded or socket weld inlet/outlet connections
- Strainer are designed to relevant ASME standards
- Body investment casted and well proportioned to ensure low pressure drop as per annexure 2
- Guaranteed pressure drop as per table - 4a.
- Net free straining area is min. 4 times pipe cross sectional area with standard screens
- Machined filter seats on both ends for pricise seating of filter element
- Grooved , Threaded end cover which doubles up as drain/blow off
- Threaded covers are provided with flat gaskets for proper sealing
- Pressure rating 25 bar
Material Data
| Component | Material |
|---|---|
| Body / Cover | 216 WCB,ICB ,CF8, CF8M,GM,Ni Al Bronze |
| Gaskets | CAF, NACF, Neoprene, NItrile,PTFE |
| Filter Element | SS 304,316, Duplex, Brass, Monel, Hastalloy C |
Standard Screens
| Size Range | Opening |
|---|---|
| ½ in-1½ in (15mm-40mm) | 0.039 in (1 mm) |
Dimensions
| Size (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|
| 15 | 59 | 40 | 60 | 21.72 | 10 |
| 20 | 80 | 54 | 81 | 27.05 | 10 |
| 25 | 84 | 67 | 102 | 33.78 | 15 |
| 32 | 105 | 76 | 114 | 42.55 | 15 |
| 40 | 119 | 81 | 121 | 48.64 | 15 |
| 50 | 138 | 97 | 146 | 61.11 | 15 |
| 65 | 183 | 124 | 184 | 73.81 | 15 |
| 80 | 203 | 133 | 190 | 89.79 | 15 |
Performance Curves

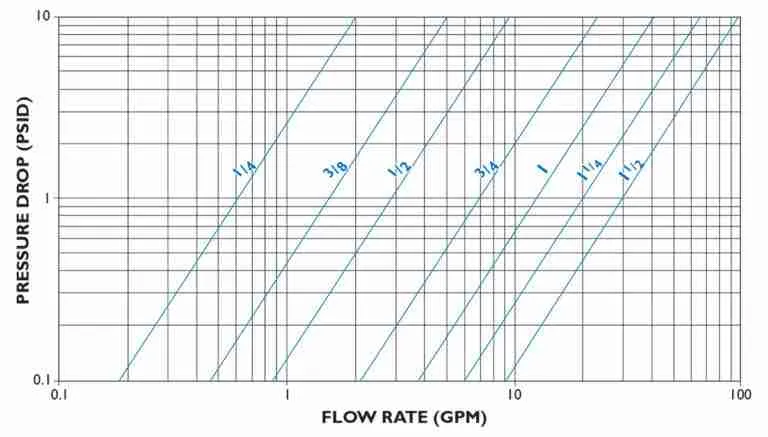

Cast Y Strainer Pressure Drop — Liquids (Sizes 15-40mm)

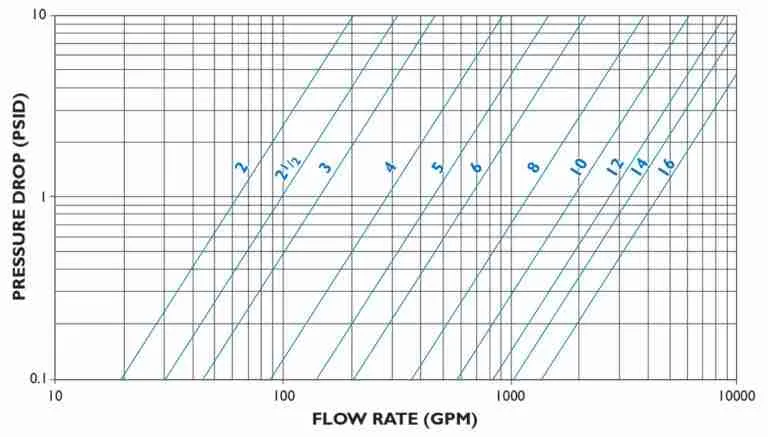

Cast Y Strainer Pressure Drop — Liquids (Sizes 50-400mm)
Note: Pressure drop curves are based on water flow with standard screens.
