YFP Series
Product
YFP-Series
Design
- Standard sizes from 2” – 24”
- Flanged to ANSI, DIN, IS ,BS and Butt welded connections are available
- Rated to 150 lbs and 300lbs as standard. Higher ratings can be made on request
- Bolted covers are standard
- May be installed in horizontal or vertical pipelines
- Qualified welders as per ASME SEC VIII.DP of welds are standard Radiography of welds can be done on request
- Covers are made of ANSI ,DIN,IS,BS With rating equal to the connection flanges
- Drain/blow off connections are provided with plugs as standard
- Vents, differentials and special covers are optional
- Guaranteed low pressure drop as per Table – 1
- Net free straining area 4 time pipe c/s area
Material Data
| Component | Material |
|---|---|
| Body | IS1239,3589 ASTM A106, SS304/316, DUPLEX STEEL |
| Cover | A105, SA 516 GR 70, CS TO IS 2062, SS316,304, DUPLEX STEEL |
| Fastener | A193 B7 Bolts & A 194 2 H Nuts with With spring washer. SS 304/316 |
| Gaskets | CAF, NACF, Neoprene, NItrile,PTFE |
| Drain Plug | A105, CS TO IS 1875-II, Stainless Steel |
| Filter Element | SS 304,316, Duplex, Brass, Monel, Hastalloy C |
Standard Screens
| Size Range | Opening |
|---|---|
| 2″-8″( 50mm-200mm) | 0.125 IN. (3.2mm) |
| 10″-12″(250mm-300mm) | 0.125 IN. (3.2mm) |
| 14″-24″(350mm-600mm) | 0.177 in. (4.5mm) |

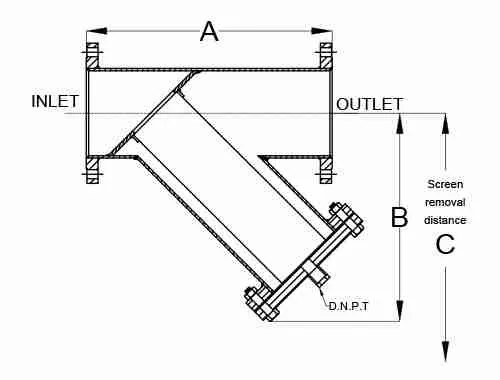

Dimensions
| Size (mm) | A (mm) | B (mm) | C (Flanged) (mm) | C (Grooved) (mm) |
|---|---|---|---|---|
| 50 | 275 | 209 | 297 | – |
| 65 | 340 | 248 | 365 | 357 |
| 80 | 340 | 307 | 486 | 375 |
| 100 | 375 | 382 | 594 | 470 |
| 125 | 438 | 471 | 742 | 533 |
| 150 | 559 | 539 | 855 | 654 |
| 200 | 610 | 766 | 1267 | 821 |
| 250 | 800 | 902 | 1485 | 1041 |
| 300 | 832 | 1034 | 1710 | 1194 |
| 350 | 1010 | 1177 | 1940 | – |
| 400 | 1149 | 1312 | 2270 | – |
| 450 | 1232 | 1453 | 2404 | – |
| 500 | 1365 | 1595 | 2639 | – |
| 600 | 1626 | 2035 | 3419 | – |

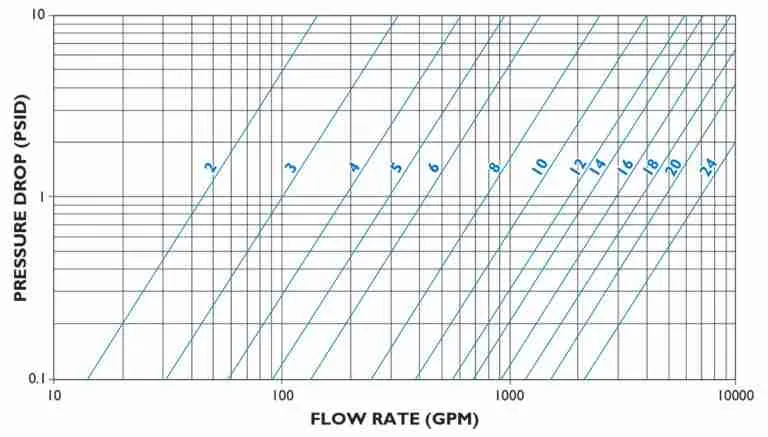

Performance Curves
Fabricated Y Strainer Pressure Drop — Liquids (Sizes 50-600mm)
Note: Pressure drop curves are based on water flow with standard screens.
