YCP Series

Product

ANSI B16.5 Available as standard. IS, DIN, BS 10 connections on request
Strainer body meets ASME B16.34.
Bolted covers to ANSI 16.5 is Standard
CAF, Neoprene, NACE, TEFLON gaskets can be provide
Machined filter guides on cover and body is standard
Drain/Blow-off connection furnished with plug as standard
Minimum of 4 times free straining area to pipe cross sectional area along with properly
Proportioned body geometry ensures low pressure drop and low cleaning cycle

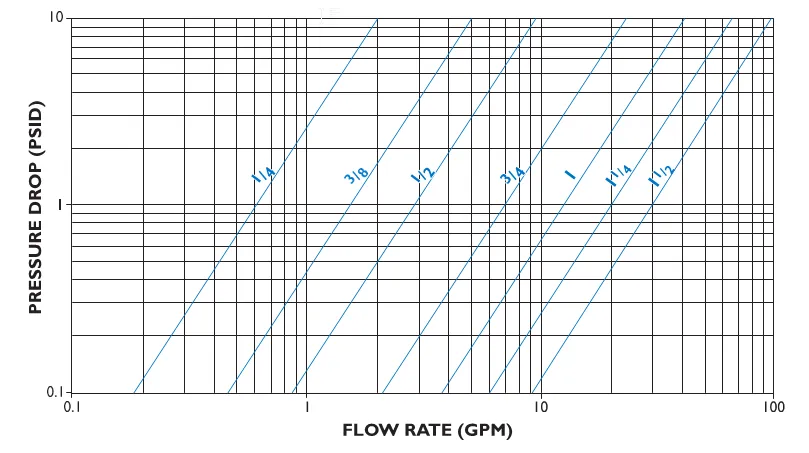

Guaranteed pressure drop as per curves shown in Table -4b.
Pressure rating- 150, 300 lbs

Component	Material
Body	216 WCB, ICB, CF8, CF8M, Cast Iron (only in 150lbs)
Cover	Carbon steel, Stainless Steel
Fastener	A193 B7 Bolts & A 194 2 H Nuts With spring washer.
Gaskets	CAF, NACF, Neoprene, Nitrile, PTFE
Drain / Vent Plug	A105, CS TO IS 1875-II, Stainless Steel
Filter Element	SS 304, 316, Duplex, Brass, Monel, Hastalloy C

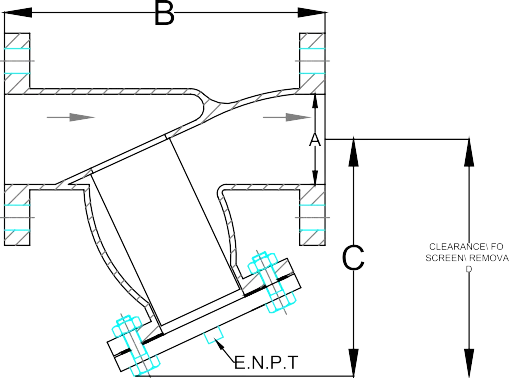

Size	A (mm)		B (mm)		C (mm)		D (mm)		E NPT (mm)
Size	150	300	150	300	150	300	150	300	150	300
15	13	13	152	165	99	108	121	146	8	8
20	19	19	178	197	108	127	146	171	10	10
25	25	25	191	200	121	140	162	206	15	15
40	38	38	229	267	143	178	229	260	15	15
50	51	51	219	236	133	145	191	203	15	15
65	64	64	260	276	191	183	267	260	20	20
80	76	76	295	320	195	207	276	292	25	25
100	102	102	365	372	232	245	330	346	40	40
125	127	127	448	470	279	391	432	546	50	50
150	152	152	473	502	330	381	467	546	50	50
200	203	203	619	635	389	419	549	559	50	50
250	254	254	660	705	486	538	686	762	50	50
300	305	305	772	838	559	617	787	873	50	50

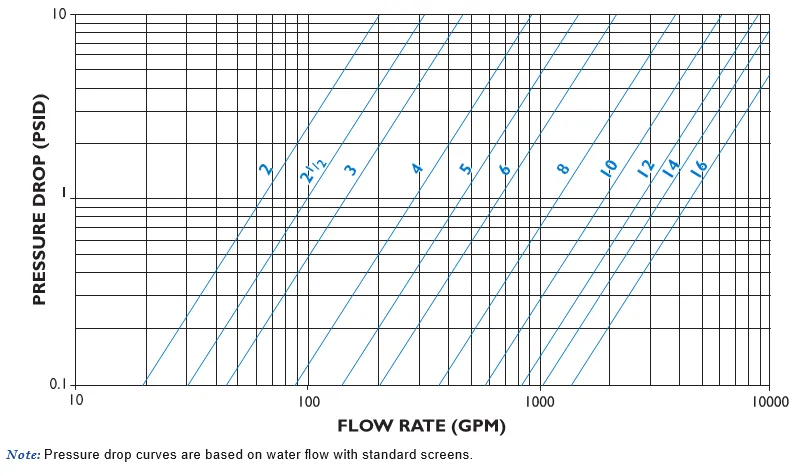

Note: Pressure drop curves are based on water flow with standard screens.
