BFP-Series

Product

Standard sizes from 2” – 24”. Larger sizes available upon request
Available In flanged or Butt-weld end connections
Standard thru bolt cover design.Other Covers on request
Desgined to API 6D & Face to Face as per ASME B16.10
Perforated screens are standard
May be installed in horizontal pipelines
All welders are qualified to ASME Section IX
Straineres designed to meet the requirements of ASME Section VIII, Div.1
Drain with plug is standard . Drain valves can be supplied on request
Vents with plug and Dp indicators are standard
Large body with Guaranteed low pressure drop as per pressure drop curves in Table -3
Net free straining area minimum 6 times for standard screen

Component	Material
Body	IS1239,3589 ASTM A106, SS304/316, DUPLEX STEEL
Cover	A105, SA 516 GR 70, CS TO IS 2062, SS316,304, DUPLEX STEEL
Fastners	A193 B7 Bolts & A 194 2 H Nuts with spring washer. SS 304/316
Gaskets	CAF, NACF, Neoprene, NItrile,PTFE
Drain / Vent Plug	A105, CS TO IS 1875-II, Stainless Steel
Filter Element	SS 304,316, Duplex, Brass. Monel, Hastalloy C

Size mm	A mm	B mm	C mm	D mm	E mm	F mm
50	324	473	283	168	635	15
80	356	521	318	219	724	20
100	406	565	356	219	775	25
125	457	616	432	273	775	25
150	508	858	617	273	914	25
200	559	1136	856	324	1092	40
250	813	1369	950	406	1473	40
300	889	1610	1184	457	1562	40
350	940	1822	1422	508	1772	50
400	1067	1980	1516	610	1930	50
450	1181	2413	1905	610	2363	50
500	1321	2407	1850	762	2359	50
600	1626	3022	2317	914	2972	50

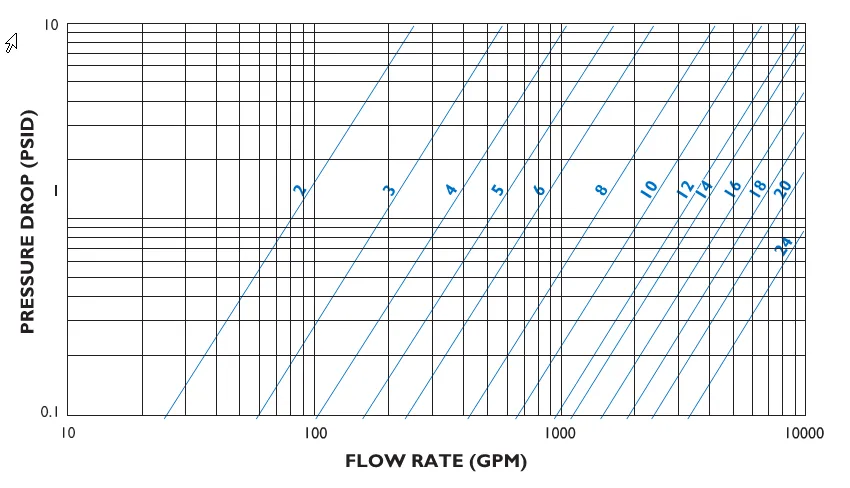

Note: Pressure drop curves are based on water flow with standard screens.
