BFE-Series
Product
BFE-Series
Design
- Standard sizes from 2” – 24”. Larger sizes available upon request
- Available In flanged to BS 10 TAB ‘E’or Butt-weld end connections
- Standard thru bolt cover design
- Perforated screens are standard
- May be installed in horizontal pipelines
- Drain/ vent with plug is is standar
- Body diameter 1 size higher than the line size
- Commercial strainer where higher pressure drop is allowable
- Net free straining area minimum 4 times for standard screens
- Hydro tested to 12 bar
Material Data
| Component | Material |
|---|---|
| Body | CS to IS1239,3589 Class A / CS TO IS 2062 |
| Cover | CS TO IS 2062 |
| Fastners | CS TO IS 1367 |
| Gaskets | CAF,Neoprene, NItrile |
| Drain / Vent Plug | A105, CS TO IS 1875-II, Stainless Steel |
| Filter Element | SS 304,316 |
Standard Screens
| Size Range | Opening |
|---|---|
| 2"-8" ( 50mm-200mm) | 0.125 IN.(3.2mm) |
| 10"-12" (250mm-300mm) | 0.125 IN.(3.2mm) |
| 14"-24" (250mm-600mm) | 0.188 IN.(4.8mm) |

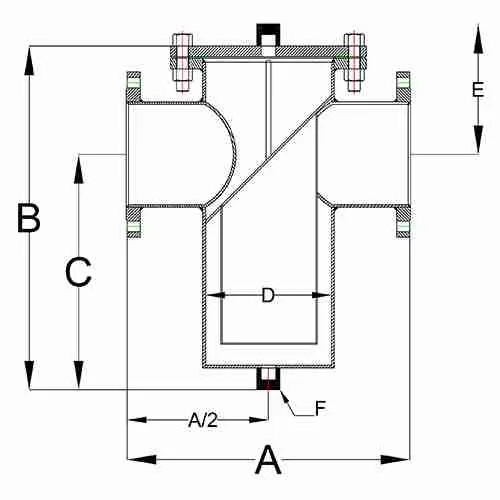

Dimensions
| Size mm | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| 25 | 175 | 259 | 159 | 33 | 227 |
| 40 | 218 | 222 | 110 | 48 | 281 |
| 50 | 264 | 314 | 185 | 60 | 326 |
| 65 | 267 | 392 | 255 | 76 | 417 |
| 80 | 315 | 440 | 278 | 89 | 493 |
| 100 | 349 | 451 | 258 | 114 | 616 |
| 150 | 406 | 685 | 500 | 165 | 917 |
| 200 | 536 | 598 | 376 | 219 | 1111 |
| 250 | 609 | 578 | 318 | 273 | 1111 |
| 300 | 678 | 594 | 290 | 324 | 1516 |
| 350 | 760 | 744 | 412 | 356 | 1409 |
| 400 | 799 | 929 | 494 | 406 | 1650 |
| 500 | 908 | 912 | 456 | 508 | 1923 |
| 600 | 1000 | 1272 | 772 | 600 | 2433 |
| 700 | 1100 | 1328 | 728 | 700 | 2779 |
| 750 | 1100 | 1456 | 806 | 750 | 2966 |
| 900 | 1575 | 2284 | 1446 | 900 | 3592 |
| 1000 | 1800 | 2185 | 1240 | 1000 | 3819 |
| 1100 | 1955 | 2271 | 1226 | 1100 | 4230 |
