A Series Strainer

Design

  • Standard sizes from 2” - 24”. Larger sizes available upon request
  • Available with RF flanged ANSI B16.5 or Butt welded ends
  • Standard thru bolt cover design
  • 304 SS perforated screens are standard.
  • May be installed in horizontal or vertical pipelines.
  • All welders are qualified to ASME Section IX
  • Strainers designed to meet the requirements of ASME B31.1,ASME B31.3 and / or ASME Section Viii, Div. I.
  • Drains, vents, differentials and special covers are optional.
  • Pressure drop as per Table-2
  • End and cover flanges can be supplied as Slip on

Material Data

ComponentMaterial
BodyA234 Gr WPB/ CS TO IS1239/3589 / ASTM A106/SS304/ SS316
CoverCS TO IS 2062, ASTM A105, SA516 Gr60/70, SS304, SS316
Connection FlangesCS TO IS 2062, ASTM A105, SA516 Gr60/70, SS304, SS316
FastenerA193 Gr B7, CS TO IS 1367, Stainless steel
GasketsNeoprene, Nitrile rubber, CAF, Teflon, SS304/316 Spiral wound

Standard Screens

Size RangeOpening
2"-8" ( 50mm-200mm)0.125 IN. (3.2mm)
10"-12" (250mm-300mm)0.125 IN. (3.2mm)
14"-24" (350mm-600mm) 0.188 in. (4.8mm)

Y-Strainer Engineering Diagram Blueprint

Dimensions

SizeABCD
50254127146279
80311172179349
100362210205413
125425248237489
150464286257540
200559356305660
250635432348762
300737508400889
350813559441991
4008646104681067
1509656865221194
50010517625681305
60011688646321473

Performance Curve

Strainers Pressure Drop Profile

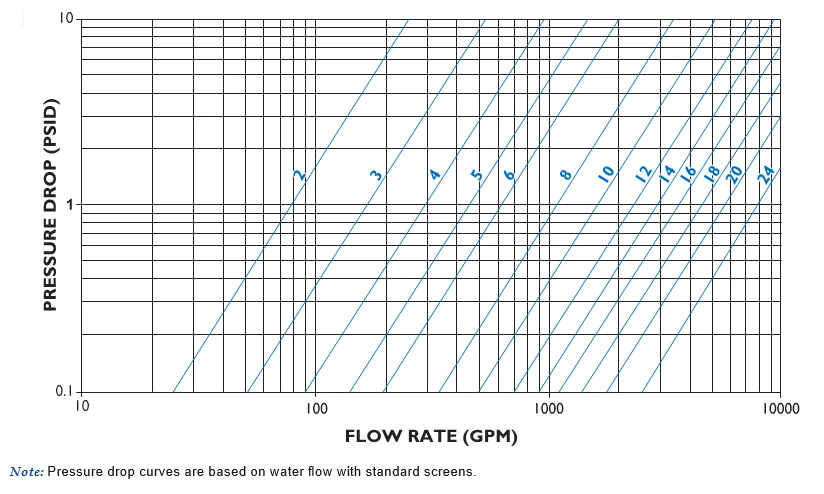

Pressure Drop Versus Flow Rate Line Curves Graph

Note: Pressure drop curves are based on water flow with standard screens.
